Create a healthier, more comfortable home to live
ComfoAir 180
Heat Recovery Unit
The ultra-compact Zehnder ComfoAir 180 is suitable for medium sized apartments and small homes. It features a high efficiency counter-flow heat exchanger that can recover up to 95% of the heat.
Ultra Compact – Maximum Comfort
The Zehnder ComfoAir 180 is an ultra-compact, heat recovery ventilation system that is highly suited to new builds and renovation projects.
The ComfoAir extracts air from wet rooms (kitchens and bathrooms) to provide maximum comfort with simple operation and high efficiency. It extracts the heat energy which would have otherwise been lost during the extract process and transfers this to the fresh, filtered supply air which is drawn in from outside.
This is done using high efficiency counter - flow heat exchangers which can recover up to 95 % of the heat.
Features
Specifications
1 x Ø125mm optional supply air connector
Technical Data
Model No | Energy consumption in Watts | Unit sound Level @ 0m in dB(A) | ||||||
Low | Medium | High | Max | Low | Medium | High | Max | |
CA180 | 15 | 26 | 45 | 84 | 33 | 39 | 46 | 50 |

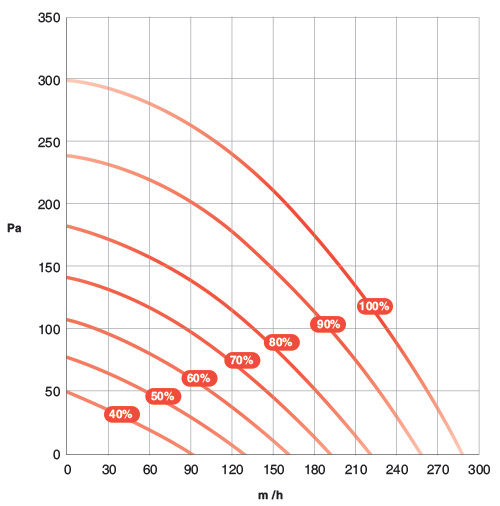

Performance Curve

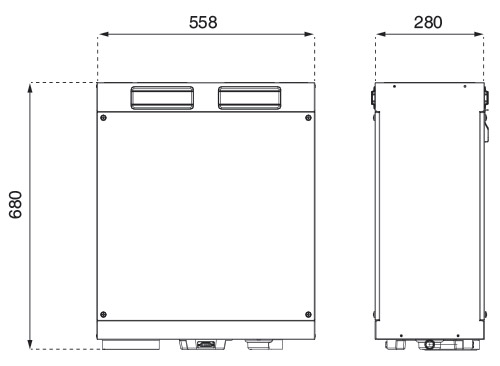

Dimensional Data
ComfoAir 180
